Amorphous Cores

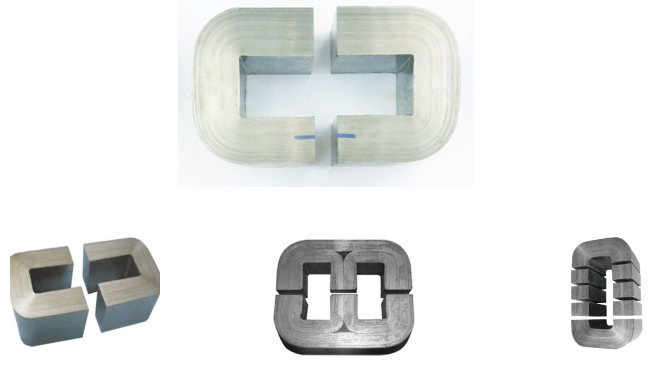

AMORPHOUS C CORES AND E CORES
C-Cores and E-Cores are manufactured with iron-based amorphous Alloy. Their unique combination of low loss and high saturation flux density take advanced power conditioning applications to higher performance levels than previously possible with conventional ferromagnetic materials.
Properties
| Saturation flux density | Tesla | 1.56 |
|---|---|---|
| Permeability | Depening on gap size | Variable |
| Saturation - Megnetostriction |
ppm | 27 |
| El. Resistivity | μ-Ω-cm | 137 |
| Ribbon Thickness | μm | 25 |
| Density | g/cm3 | 7.19 |
| Thermal Expansion | Ppm/0 C | 7.6 |
| Crystallization Temperature | °C | 550 |
| Curie temperature | °C | 415 |
| Continous service temperature | °C | 155 |
| Tensile strength | MN/m2 | 1k-1.7k |
| Elastic modulus | GN/m2 | 100-110 |
| Vicker's Hardness | 50G load | 860 |

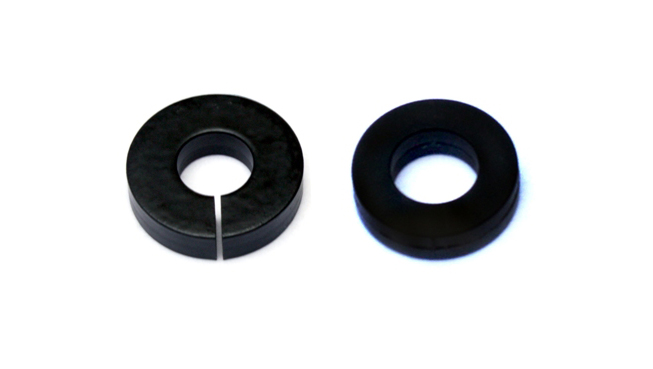

GAP TOROIDAL CHOKE CORES
Toroidal choke cores are manufactured with iron-based amorphous alloy Metal Ribbon. They offer a unique combination of ultra-high saturation induction, high energy storage capability and low core loss for high frequency magnetic components which are significantly smaller than conventional components.
AMORPHOUS METAL BLOCKS
Blocks are manufactured with iron based amorphous alloy.These blocks offer a unique combination of high saturation induction, high permeability and low losses.These Blocks can be arranged in different layouts.
SQUARE LOOP CORES
Square Loop Cores manufactured with cobalt based amorphous alloy allow the design of mag amps that can operate at higher frequencies than previously possible.
Their combination of magnetic properties enable mag amps to provide unparalleled precision and efficiency in output regulation.
